Changhong Model High

Basic Info.

Model NO.	CH4-600N
Structure	Stacked
Application	Flexible Packaging Printing
Automatic Grade	Semi-Automatic
Printing Speed	30-100m/Min
Drive Type	Big Gear Drive or Belt Drive
Printing Plate Lifting System	Hydraulic Press Control
Speed	30-70m/Min
Tension	Magnetic Power and Auto Tension Controller
Gross Power	32kw
Weight	5500kgs
Colour	4 Colour
Transport Package	Wooden Boxes, Wooden Plate
Specification	CE, ISO Certificate
Trademark	Changhong
Origin	China
HS Code	8443140000
Production Capacity	20sets/Month

Product Description

Company Information

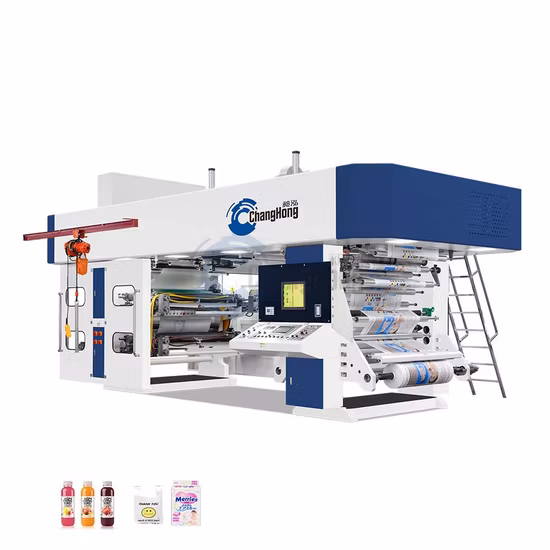

Changhong Model High-Speed Four Colors Environmental Non-Woven Bags Flexographic Printing Machine

Product Description
Machine The main features
1.Take it easy, accurate color, long life 2. The use of motors, variable frequency speed control, saving electricity, running small fluctuations 3. Off printing roll automatic stop the ink-running motor, and up-printing roll automatic start running the ink 4. The use of special diagonal-tooth gear, print size is accurate, 5. There are two sets of heating devices, including central heating and constant temperature control system for packet control 6. Low-roller special steel processing, and special process, and plating thickness of 0.1mm protective layer of hard chromium 7 Alloy roll with hard oxidation, treating by dynamic balance, static balanced 8 With a cold wind bellows, and can effectively prevent produce with ink adhesion after printing 9. The Print produce are clear and good arrangement quality
Main parameter

Model	CH4-600N	CH4-800N	CH4-1000N	CH4-1200N	CH4-1400N
Max.material width	600mm	800mm	1000mm	1200mm	1400mm
Max.printing width	550mm	750mm	950mm	1150mm	1350mm
Printing color	4 color
Printing length	300-950mm
Max. Mechanical speed	100m/min
Max. Printing speed	80m/min
Printing material	Paper/ Non-woven
Drive type	Big gear drive or Belt drive
Unwind Unit	Auto loading
Rewind Unit	Surface Rewind
Printing plate lifting system	Hydraulic press control
Anilox cylinder	Ceramic anilox roller or Metal roller
Register precision	Longitude:±0.25mm Transverse:±0.25mm
Printing plate thickness	Photopolymer plate 1.7mm or 2.28mm ( As customer requirement)

Changhong is continuously seeking for development of their products. For this reason, Changhong reserves the right to supply the improved products without advance notice.
Product Overviews

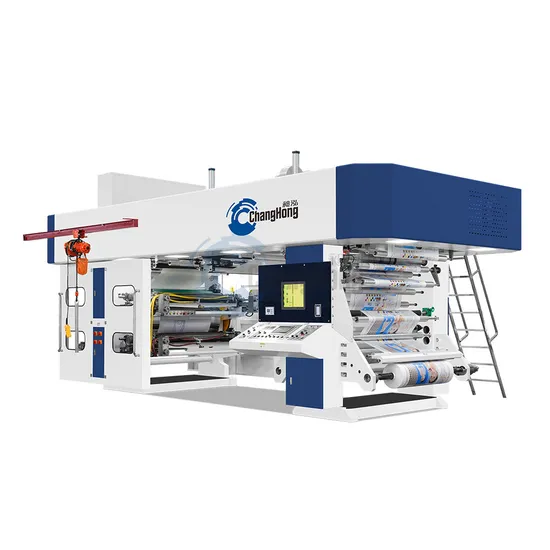

Changhong Model High-Speed Four Colors Environmental Non-Woven Bags Flexographic Printing Machine

Print Sample Photo

Changhong Model High-Speed Four Colors Environmental Non-Woven Bags Flexographic Printing Machine

Packaging & Shipping

Changhong Model High-Speed Four Colors Environmental Non-Woven Bags Flexographic Printing Machine

FAQ

1. Are you a factory or trading company?
A: We are a factory, the real manufacturer not trader.

2. Where is your factory and how can I visit it?
A: Our factory is located in Ruian City, Zhejiang Province, China about 40 minutes by plane from Shanghai ( 5 hours by train)

3. What is your after-sale service?
A: We have been in flexo printing machine business for many years, we will send our professional engineer to install and test machine. Beside, we can also provide online support, video technical support, matching parts delivery, etc. So our after-sales services is always reliable.

4. How to get machines price?
A: Pls provide following information:
1)The color number of printing machine;
2)Material width and effective print width;
3)What material to print;
4)The photo of printing sample.

Our Services
1 Year Guarantee !
100% Good Quality !
24 Hours online Service!
The buyer paid tickets ( go and back to wenzhou), and pay 100usd/day during the install and testing period!
